GoSmart Additional monitor IP-750B for video door phone IP-750A
GoSmart Additional monitor IP-750B for video door phone IP-750A
Keep in touch with your homeThe GoSmart LCD IP-750B expandable monitor features a 7″ LCD touchscreen that delivers true-to-life color reproduction. Automatically connects to your home Wi-Fi network for easy pairing in the EMOS GoSmart app.The…
Find sellerKey benefits
Product description
Keep in touch with your home
The GoSmart LCD IP-750B expandable monitor features a 7″ LCD touchscreen that delivers true-to-life color reproduction. Automatically connects to your home Wi-Fi network for easy pairing in the EMOS GoSmart app.
The IP-750B LCD monitor (H4021) is self-contained fully functional and compatible with the IP-750A monitor (H4020) in the base set. It can therefore be easily used to expand your home intercom system or choose from a wide range of multi-user outdoor camera units to build your own set as you wish.
Perfect Picture and Elegant Appearance

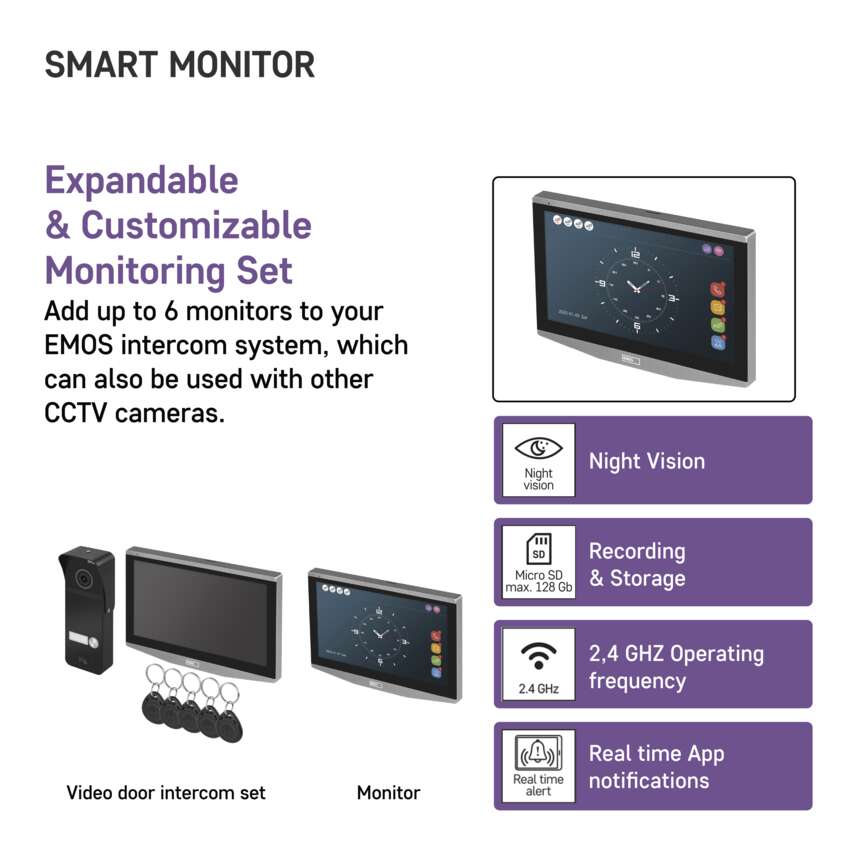

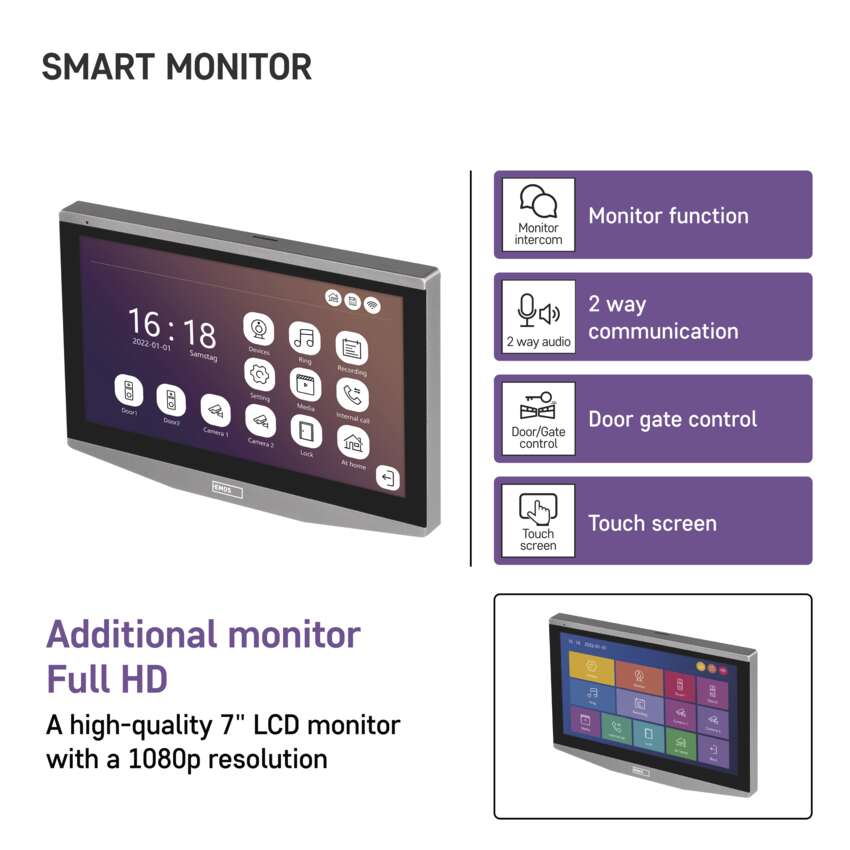

The elegant 7″ Full HD LCD monitor (1080p) with touch screen offers quality colour display and wide viewing angles thanks to IPS technology. The H4020 base set can be expanded to up to 6 internal units, with all units containing a WiFi module, but only one will be set up as a MASTER monitor. The others will operate in SLAVE mode. The indoor units in one branch enable addressable intercom for calling between rooms in the home.
Installation
The LCD monitor for the H4020 base set expansion is permanently powered from a 12V power supply. For powering multiple monitors, a central power supply designed for DIN rail mounting H7009 can be used. The H7009 power supply can power up to 4 indoor monitors and a door lock. Once installed in the selected location, simply connect the monitor to the H4020 base kit.
Integration to EMOS GoSmart and TUYA
Create your own smart home with EMOS GoSmart and other TUYA compatible smart devices. Connect individual devices, set up automation for their activities and control them remotely with a fully localised and intuitive mobile app.
Let your home take care of itself and give yourself more time for your loved ones and interests.
Technical specifications
| Parameter | Value |
|---|---|
| color display | yes, IPS |
| colour | silver |
| recommended camera unit | H3016, H3017, H3018, H3019 |
| intercom | yes |
| installation | on the wall |
| optional connection of CCTV cameras | yes |
| power supply for the monitor | 12 V DC (included) |
| lock and gate control | yes |
| number of melodies | 10 + own |
| number of cables (monitor/lock/gate) | 4+0+2 |
| required wiring | UTP or SYKFY 5 × 2 × 0.5 |
| packaging | 1 pc, box |
| volume control | yes |
| monitor size | 145 × 205 × 12 mm |
| screen size | 7 |
| warranty period | 2 years |
| product | video phone |
| automatic image saving | yes |
| number of camera units | 2 |
| Parameter | Value |
|---|---|
| monitor resolution | Full HD 1080p |
| touch screen | yes |
| supported OS | Android, iOS |
| compatibility | EMOS GoSmart, TUYA, LIDL, Smartlife, open system |
| protocol | Wi-Fi |
| SD card storage | yes |
| cloud storage | yes |
| transmission frequency | 2.4 GHz WIFI (IEEE802.11b/g/n) |
| installation material | yes |
| control by voice assistants | no |
| voice communication | two-way |
| other functions | multimedia playback, answering machine |
| notifications to the mobile app | yes |
| aplication languages | EN, CZ, SK, PL, DE, HU, SI, FR, + 60 other languages |
| menu languages | CZ, EN, DE, FR, ES, PL, IT, RU |
| WebRTC function | yes |
| gate control | yes |
| # | GoSmart |
EMOS GoSmart app
Install the brain of your smart home on your mobile device.
Control all your products with a single app
Full localisation and ease of use
The EMOS GoSmart app makes it easy to control all your smart home devices via your mobile phone or tablet. Thanks to its perfect localisation, you can set it up to your native language.
Without complicated settings, the EMOS GoSmart app gives you an up-to-date overview of any activity in your home and allows you to conveniently control all your smart devices remotely.
